NECLCD SCREENNL8060BC31-50F | |
tsim tawm | NEC |
Qauv Lub Npe | NL8060BC31-50F |
npo loj | 12.1 hli |
Hom npo | a-Si TFT-LCD, LCM |
Kev daws teeb meem | 800 (RGB) × 600 [SVGA] 82 PPI |
Pixel configuration | RGB Vertical Stripe |
Zaub loj | 246 (H) × 184.5 (V) mm |
lub cev qhov ntev | 260.5 (H) × 203 (V) × 9.2 (D) mm |
Pom qhov loj me | 249. 0(H) × 187.5(V) mm |
kho saum npoo | Clear, Hard txheej (3H) |
Brightness | 900 cd / m² (Typ.) |
Zoo sib xws | 1000: 1 (Typ.) (TM) |
Lub kaum sab xis zoo tshaj | 6 hnu |
Optical hom | TN, Feem ntau Dawb, Transmissive |
Saib lub kaum sab xis | 80/80/80/80 (Typ.)(CR Ntau dua lossis sib npaug rau 10) |
Teb sijhawm | 3/15 (Typ.)(Tr/Td) |
Tus naj npawb ntawm cov xim | 262K 40% NTSC |
Backlight hom | WLED [5 txoj hlua], 70K teev, W/O Tsav Tsheb |
Vaj huam sib luag hnyav | 490/540g (Typ./Max.) |
Thov rau | Kev lag luam |
Refresh tus nqi | 60 Hz |
Kov muaj nuj nqi | Tsis kov |
teeb liab system | CMOS (1 ch, 6-ntsis), 41 pins Connector |
Muab hluav taws xob | 3.3/5. 0V (Typ.) |
Qhov siab tshaj plaws | Ua haujlwm kub: {{0}} ~ 80 degree ; Cia kub: -30 ~ 80 degree; Kev vibration theem: 2.0G (19.6 m/s²) |

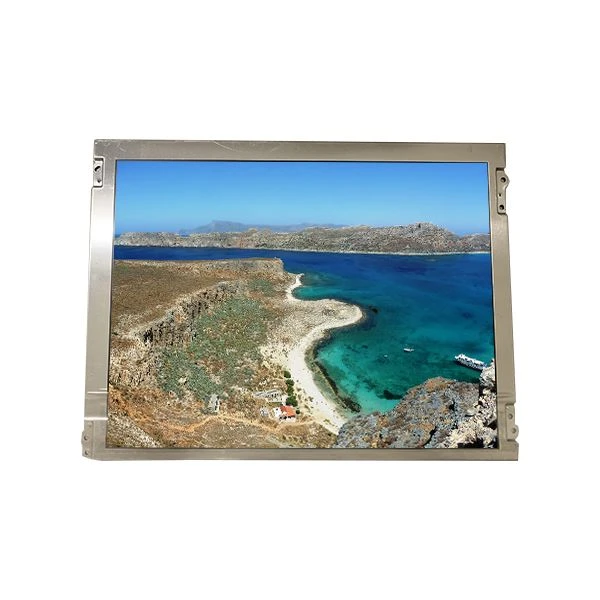

NL8060BC31-50F 12.1 nti WLED TFT lcd zaub | |
Peb qhov zoo
1: Peb yog cov khoom lag luam, nrog rau cov khoom tsim nyog
2: Qhov zoo ntawm cov khoom tau mus txog ntau daim ntawv pov thawj
3: Peb txhawb nqa ntau yam kev thauj mus los, Hong Kong thiab Suav cov ntawv xa ntawv, EMS.DHL tseem fwv .UPS thiab TNT, tuaj yeem ua tau raws li qhov sib txawv ntawm cov neeg yuav khoom.
Q: Koj puas txais cov qauv txiav txim rauNL8060BC31-50F ?
A: Tau kawg! qauv xaj yog txais tos!
Q: Yuav ua li cas yog tias NL8060BC31-50FI tau txais tsis tuaj yeem ua haujlwm?
A: NL8060BC31-50F yuav raug kuaj nruj me ntsis ua ntej xa khoom.Yog tias tshwm sim, pls xyuas tag nrho cov txuas txuas ntxiv, Yog tias tseem muaj teeb meem, peb lees txais pauv lossis xa rov qab vaj huam sib luag.
Q: Koj puas tuaj yeem muab luv nqi rau kuv yog tias kuv xav tau ntau qhov NL8060BC31-50F ?
A: Tau kawg! Yog tias koj ua qhov kev txiav txim loj, peb yuav muab luv nqi rau koj.
Q: Yuav ua li cas them nyiajrau NEC NL8060BC31-50F ?
A: Peb lees txais T / T, Paypal, western union.
