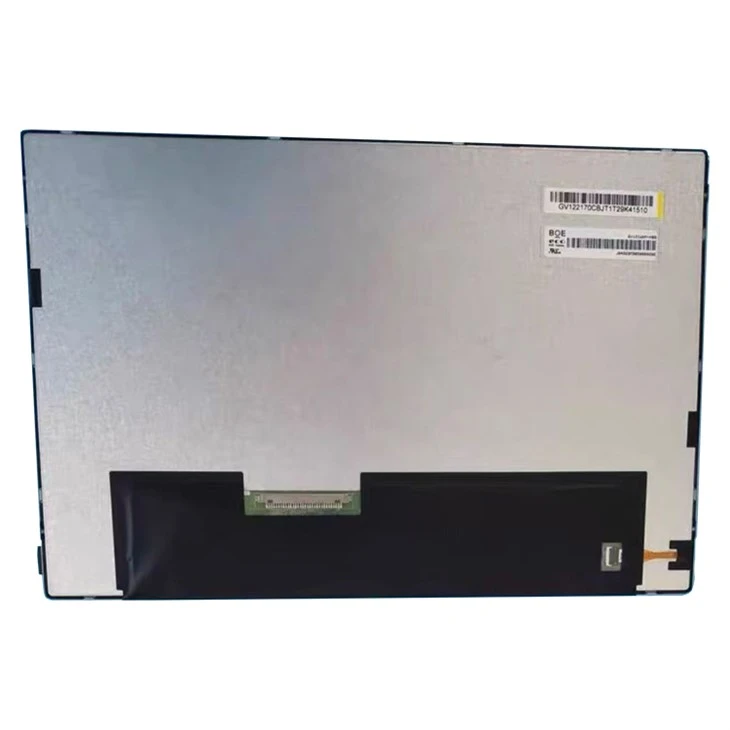

GV122WUM-N80 Cov ntaub ntawv:
|
Hom |
BOE |
|
Qauv |
GV122WUM-N80 |
|
Diagonal Loj |
12.2 hli |
|
Hom |
ib -Si TFT-LCD, LCM |
|
Pixel Number |
1920 (RGB) × 1200, WUXGA, 16:10 |
|
Dot Layout |
RGB Vertical Stripe |
|
Chaw ua haujlwm |
262.771 × 164.232 hli (H × V) |
|
Lub cev loj |
276.53 × 179.43 × 5.7 hli (H × V × D) |
|
Pawg |
- |
|
Nto Txheej |
Antiglare (Haze 25%), Hard txheej (3H) |
|
Luminance |
600 cd / m² (Typ.) |
|
Qhov sib piv piv |
1000: 1 (Typ.) (TM) |
|
Saib Kev Qhia |
Symmetry |
|
Teb Sijhawm |
25 (Typ.)(Tr+Td) |
|
Saib lub kaum sab xis |
89/89/89/89 (Typ.)(CR Ntau dua lossis sib npaug rau 10) |
|
Kev ua haujlwm hom |
ADS, Feem ntau Dub, Transmissive |
|
Txhawb Xim |
16.7M |
|
Kov Vaj Huam Sib Luag |
Tsis muaj |
|
Lub zog Cons. |
- |
|
Lub teeb Source |
8S6P WLED, Tsis muaj tsav tsheb |
|
Ncej tus nqi |
60 Hz |
|
Tsim Rau |
Kev lag luam |
|
Hom teeb liab |
LVDS (2 ch, 8-ntsis), Connector 45 pins |
|
Fais fab mov |
3.3V (Typ.) |
|
Ib puag ncig |
Cia Temp . -30 ~ 80℃Kev khiav hauj lwm Temp . -20 ~ 70 degree |
GV122WUM-N80Specification kwv yees lub sij hawm xa tuaj:
Standard ShippingStandard shipping yuav siv sij hawm 10-35 hnub ua hauj lwm. Lub sij hawm xa tuaj tuaj yeem sib txawv raws li qhov chaw thiab lwm yam kev thauj mus los.
Expedited ShippingXaiv kev xa khoom sai sai rau kev thauj mus los sai, nrog rau lub sijhawm xa khoom ntawm 4-7 hnub ua haujlwm. Qhov kev xaiv no raug pom zoo rau kev txiav txim ceev.
Kev Ceeb Toom Txog Kev Xa Khoom tseem ceeb Muaj peev xwm ncuaThov nco ntsoov tias kev xa khoom qeeb tuaj yeem tshwm sim thaum hnub so pej xeem thiab kev ua koob tsheej, tshwm sim los ntawm cov khoom ntim siab thiab txwv kev xa khoom xa tuaj. Peb txaus siab rau koj txoj kev nkag siab.
GV122WUM-N80 Khoom siv:
GV122WUM-N80 Warranty Services:
Hauv lub sijhawm lav, peb muab kev txhawb nqa los daws cov teeb meem khoom.
Kev qhia pub dawbPeb pab pawg kws tshaj lij yog nyob ntawm tes los muab kev txhawb nqa thiab pab daws teeb meem cov lus nug lossis teeb meem ntsig txog koj lub vaj huam sib luag LCD.
GV122WUM-N80 Expedited Shipping:
Peb siv DHL nkaus xwb rau kev xa khoom sai kom xa koj cov khoom kom zoo thiab nrawm. Raws li lub ntiaj teb no -cov chaw muab kev pabcuam nrov nrov, DHL lav kev xa khoom sai thiab txhim khu kev qha thoob ntiaj teb. Koj cov pob khoom yuav tuaj txog hauv 3-4 hnub ua haujlwm tom qab xa khoom, yog li koj tuaj yeem tau txais koj lub vaj huam sib luag LCD tam sim.
GV122WUM-N80 FAQ:
Q: Koj puas tuaj yeem tshaj tawm kuv qhov kev txiav txim ntawmGV122WUM-N80ntawm tus nqi qis heev?
A: Yog, peb tuaj yeem ua tau. pls qhia peb ua ntej shipping.
Q: Lub warranty ntev npaum li casGV122WUM-N80?
A: 90 hnub warranty.
Q: Koj puas tuaj yeem muab luv nqi rau kuv yog tias kuv xav tau ntau npaum li casGV122WUM-N80?
A: Tau kawg! Yog tias koj ua qhov kev txiav txim loj, peb yuav muab luv nqi rau koj.
Q: Yog kuv xajGV122WUM-N80tam sim no, thaum twg koj yuav xa cov khoom?
A: Kev txiav txim yuav raug xa tuaj hauv 2-3 hnub ua haujlwm tom qab tau txais koj cov nyiaj them poob haujlwm.
Cim npe nrov: gv122wum{1}}n{2}} nti 1920 * 1200 lcd screen, Tuam Tshoj, lwm tus neeg, lag luam wholesale, yuav, pheej yig, luv nqi, luv nqi, hauv Tshuag
